Alumina's Young's modulus falls between roughly 280 and 400 GPa across commercial purity grades, rising with Al2O3 content and approaching values close to single-crystal sapphire, which is anisotropic and ranges from about 400 to 460 GPa depending on crystal orientation. The values on this page are the industry-typical figures cross-referenced from published supplier data sheets and academic references. They are directly usable for structural sizing, resonance calculations, and contact stress checks. Density, hardness, strength, and electrical values by grade sit in our alumina properties data hub. For batch-specific numbers on a finished part, our quality control team can supply the measured modulus tied to the production lot.
Young's Modulus and Elastic Modulus Are the Same Thing for Alumina
For engineering use, Young's modulus and elastic modulus are interchangeable terms. Young's modulus is one specific elastic modulus, defined as the ratio of axial stress to axial strain in uniaxial tension. When a data sheet writes just "elastic modulus" for alumina without further qualification, it means Young's modulus. Two related moduli occasionally appear on cross-referenced datasheets: shear modulus (G), which for alumina is roughly 40% of Young's modulus, and bulk modulus (K), which is roughly 60%. Both can be derived from Young's modulus if you know the Poisson's ratio, which sits at about 0.22 for polycrystalline alumina.
Young's Modulus by Alumina Purity Grade
Young's modulus climbs with purity because higher Al2O3 content displaces the lower-modulus glassy sintering-aid phase and leaves a stiffer, denser microstructure. The values below are industry typical ranges compiled from published supplier data sheets and academic sources, not batch-specific numbers from our production.
| Grade | Young's Modulus (GPa) | Notes |
|---|---|---|
| 92% Al2O3 | 280 to 310 | General-purpose grade, higher glassy phase content |
| 95% Al2O3 | 290 to 320 | Common industrial and wear-part grade |
| 96% Al2O3 | 300 to 330 | CoorsTek AD-96 reports around 300 GPa |
| 99% Al2O3 | 340 to 370 | Electronic substrate grade |
| 99.5% Al2O3 | 370 to 380 | CoorsTek AD-995 published at around 375 GPa |
| 99.7% Al2O3 | 370 to 385 | High-purity vacuum and semiconductor grade |
| 99.9%+ Al2O3 | 380 to 400 | Approaching the polycrystalline ceiling |
| Single-crystal sapphire | 400 to 460 | Anisotropic single crystal, varies with crystal orientation |
The gap between 92% (roughly 295 GPa median) and 99.9%+ (roughly 390 GPa median) is about 32%, which is a large spread for a stiffness value. Most of the climb happens between 92% and 99%, because that is where the glassy phase content drops most sharply. From 99% to 99.9%+, further Young's modulus gains are modest, roughly 8 to 10% across that whole span.
How Test Method Affects the Number
Different measurement methods report different Young's modulus values on the same alumina sample, and the gap typically runs 3 to 8%. This is the main reason two suppliers can publish different modulus figures for a nominally identical grade.
| Test Method | Typical Reading vs "True" E | Common Standard |
|---|---|---|
| Impulse excitation (dynamic) | Closest to true elastic modulus | ASTM E1876 |
| Ultrasonic pulse-echo (dynamic) | Within 1 to 2% of impulse excitation | ASTM C1198 |
| 4-point bending (static) | 2 to 5% below dynamic values | ASTM C1161 |
| 3-point bending (static) | 3 to 8% below dynamic values | ASTM C1161 |
The pattern is that dynamic methods (impulse excitation, ultrasonic) read higher than static bending methods on the same sample. Dynamic methods measure the pure elastic response over microsecond timescales, while static bending includes small amounts of microcracking and settling that lower the apparent stiffness. When you compare Young's modulus values across suppliers, ask which method was used before assuming a difference in material quality. A supplier reporting 375 GPa by impulse excitation and one reporting 355 GPa by 3-point bending may be selling the same grade of alumina.
Where Young's Modulus Actually Matters in Design
Young's modulus feeds three common design calculations, and understanding which one drives your part tells you how tight your modulus specification needs to be.

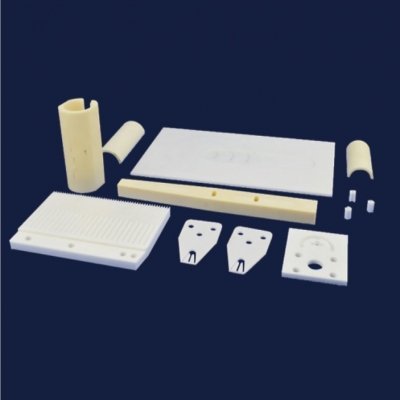

Deflection under load. For a simply supported alumina beam or plate, deflection is inversely proportional to Young's modulus. A 10% higher modulus gives roughly 9% less deflection under the same load, which matters for precision positioning stages, optical benches, and metrology fixtures. If your part is spec'd against a maximum deflection, Young's modulus is a first-order design variable.
Resonance frequency and vibration. The natural frequency of a ceramic part scales with the square root of Young's modulus divided by density. For alumina, which pairs a high modulus with a moderate density (3.6 to 3.95 g/cm³), the natural frequencies come out high, which is why alumina is used for ultrasonic transducer housings, high-frequency substrates, and resonant sensor bodies. A 5% shift in Young's modulus moves the natural frequency by roughly 2.5%.
Hertzian contact stress. When two curved surfaces press together, the peak contact pressure scales with Young's modulus to the power of two-thirds. Alumina's high modulus concentrates load into a smaller contact patch than steel would, which explains both its excellent wear performance and its brittleness under point loads. Contact stress calculations for balls, rollers, and seal faces need Young's modulus to the actual grade, not a generic "alumina" value.
Young's Modulus at Elevated Temperature
Young's modulus stays approximately constant from room temperature up to about 1000°C, dropping by roughly 5 to 8% across that range. Above 1000°C the decline accelerates because grain-boundary sliding begins to add a viscous component to the deformation response. By 1200°C the modulus is typically 15 to 20% below room temperature, and by 1400°C it is 30 to 35% below. Higher-purity grades hold their modulus further into the high-temperature regime because they carry less glassy grain-boundary phase to soften. For structural parts running above 1000°C continuously, the modulus needs to be de-rated against the actual service temperature rather than the datasheet room-temperature value.
Frequently Asked Questions
Can I get the actual Young's modulus of my batch, not just the industry range?
Yes. Batch-specific modulus is measured by impulse excitation on a witness sample from the same firing lot. We supply the value on request as part of the material certificate. The range on this page is useful for early-stage design; the batch value is what belongs in the final drawing tolerance.
How much does Young's modulus vary between batches of the same grade?
Typically within 3 to 5% for a well-controlled process. Larger variation usually points to a shift in sintering profile or feedstock purity. For designs sensitive to modulus (precision optics, resonant sensors), specify a tighter tolerance in the purchase order and expect a cost premium.
Does higher purity always mean higher Young's modulus?
Yes as a trend, but with diminishing returns. From 92% to 99% the modulus climbs steeply because glassy phase drops fast. From 99% to 99.99% the gain is under 10%, and cost climbs faster than modulus. For stiffness-driven parts, 99% is usually the practical optimum.
